Electric Powered Wheel Barrow Mini Dumper Hydrostatic System and Steering Ball Joint

The front and rear two-engine four-wheel drive facilitates the movement on lifting and uneven roads. The mini-dumper can still work even if one of the engines doesn't work.

The front and rear articulated frames provide flexible control with a smaller radius of rotation, while the front and rear frames can be turned to adapt to the ground and better adapt to harsh road conditions.

Electrohydraulic rollover bucket can provide the exact amount of discharge, transportation can reach several points of different quantity of discharge needs.

Quick disassembly and installation design, can quickly replace different accessories, to achieve different works and transport different materials.

Ergonomic control pen design, adjustable up and down design can be adapted to different heights of users.

Hydraulic reverse disc brake can help the machine stop, park and stop faster and more stable when it is lost, and ensure the safety of the machine and the user.

A unique dual control controller can better play the respective power of the front and rear engines so that the full drive function can be better played.

With a weak propulsion system, the body can move without or without electricity.

The unique cooling system of the electric control unit significantly increases the life of the electronic control components.

Integrated motor tourniquet, linear protection design, improvement of electrical reliability and safety of the vehicle, extension of machine life.

Unique built-in charger design, external charger indicator, state of charge at a glance.

The various development functions of auxiliary tools can reach the multipurpose machine.

Hydrostatic System for Seamless Control
Unlike traditional gear-driven dumpers, this electric model incorporates a hydrostatic drive system, allowing for smooth, continuous acceleration without gear-shifting jolts. Operators benefit from intuitive speed control and responsive maneuvering, making it ideal for work environments where precision and safety are paramount.

Advanced Steering Ball Joint for Maneuverability
The pivot steering mechanism, enhanced by a swivel joint between the front and rear frames, allows the dumper to articulate in confined spaces. This makes it exceptionally capable in environments with obstacles or uneven surfaces, such as gardens, construction zones, farms, and plantations.

Clean, Quiet, and Eco-Friendly Operation
Powered by dual 800W brushless DC motors, the dumper offers powerful performance while operating with minimal noise and zero emissions. This makes it suitable for both indoor and outdoor use, including noise-sensitive areas and environmentally regulated job sites.

Efficient Hydraulic Tipping Mechanism
The integrated hydraulic tipping bucket simplifies material unloading, reducing manual labor and increasing job site efficiency. With a 165L bucket capacity and 400kg load capacity, this mini dumper is more than capable of handling soil, debris, gravel, and various bulk materials with ease.

Climbing Performance & Safety Braking
Designed to tackle gradients up to 15° when fully loaded, this dumper is engineered for hilly terrain and construction slopes. Four hydraulic disc brakes provide controlled descent and added safety, giving operators full control even when navigating inclines or slippery surfaces.

Flexible Speed & Long Operating Hours
The KONSTANT mini dumper offers three forward speeds (2.5 / 5.3 / 7.3 km/h) and a reverse speed of 2.0 km/h, providing adaptability across different terrain and load conditions. It comes with a standard 48V 20Ah lead-acid battery, offering 6–8 hours of runtime, and is also compatible with a 48V 40Ah battery for extended use up to 10–12 hours on a single charge.

Electric Powered Wheel Barrow Mini Dumper Product Specifications

Model: KT-MD300ENP

Motor: Dual 800W Brushless DC Motors (48V)

Battery Options:

48V 20Ah Lead-acid (6–8 hours)

48V 40Ah Lead-acid (10–12 hours)

Charging Time: 8 hours

Drive System: Hydrostatic

Steering: Swivel Ball Joint

Speeds:

Forward: 2.5 / 5.3 / 7.3 km/h

Reverse: 2.0 km/h

Brakes: 4 Hydraulic Disc Brakes

Bucket Capacity: Approx. 165 Liters

Payload Capacity: Up to 400 kg

Wheel Size: Front & Rear – 400-8

Dimensions: 1781 × 704 × 944 mm

Net Weight / Gross Weight: 300 kg / 350 kg

Max Gradeability: 15°

Tipping System: Hydraulic

Loading Capacity:

24 pcs / 20GP

50 pcs / 40HQ

Applications of Electric Powered Wheel Barrow Mini Dumper Hydrostatic System and Steering Ball Joint

Perfect for:

Construction Sites

Landscaping & Gardening

Agricultural Work

Warehouse & Indoor Transport

Fruit Plantation Handling

DIY and Civil Engineering Tasks

Why Choose KONSTANT Mini Dumpers?

KONSTANT designs equipment that blends robust engineering with innovative control systems to deliver unmatched user satisfaction. Whether you're working in tight urban spaces or rugged outdoor terrain, our electric-powered hydrostatic mini dumper offers the performance, safety, and sustainability that modern job sites demand.

Ball Hitch

Extension Sides

Flat Bed

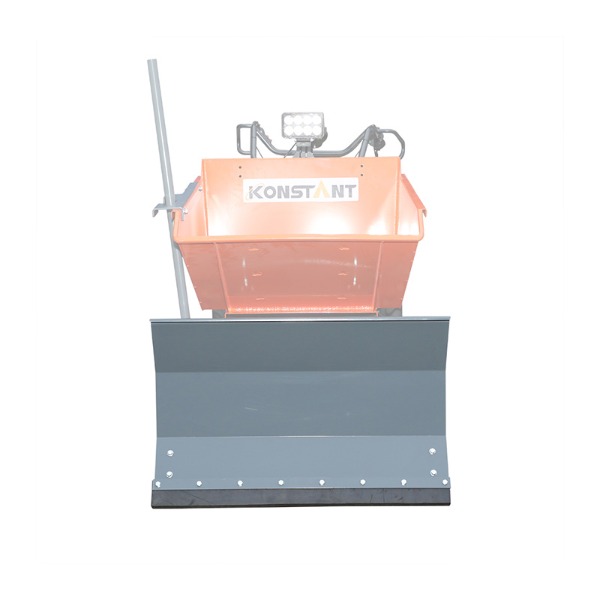

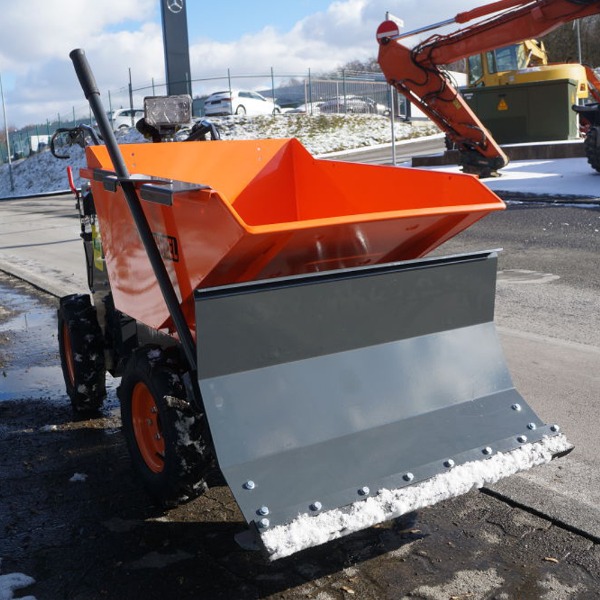

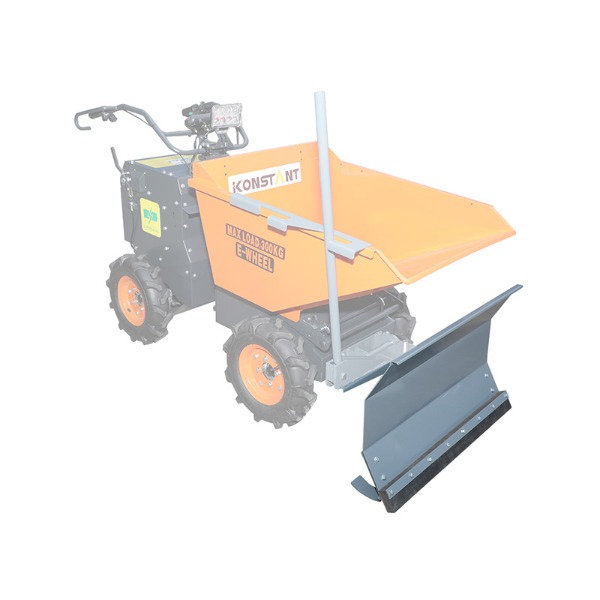

Snow blade

Turf Tyres
