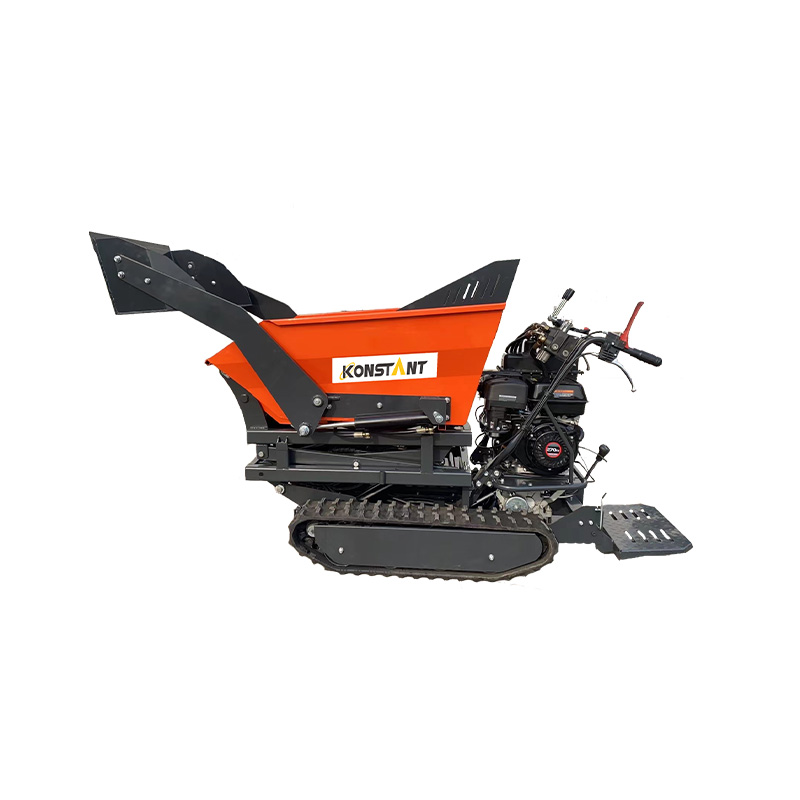

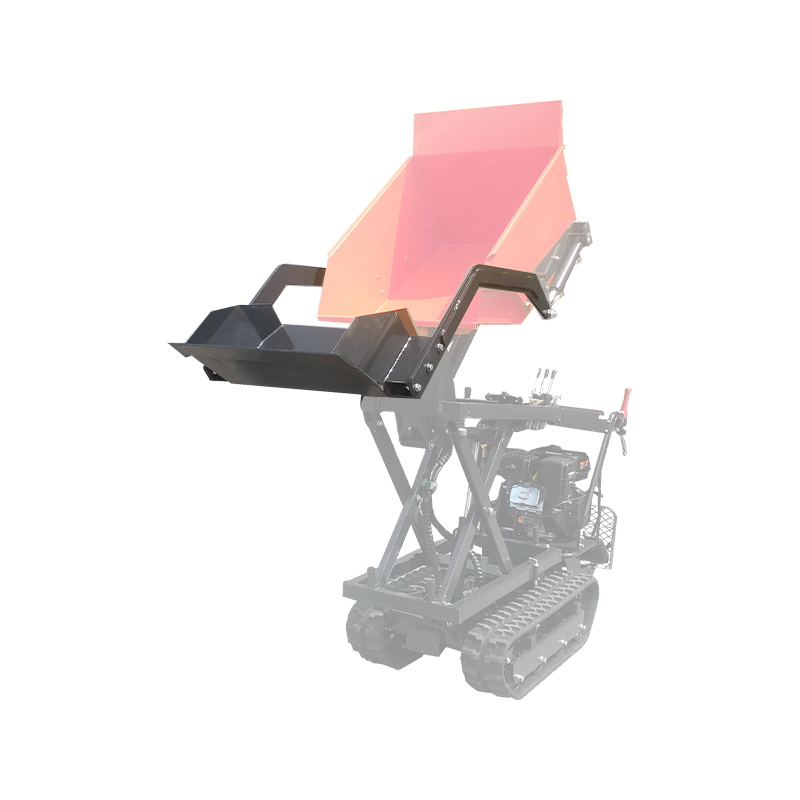

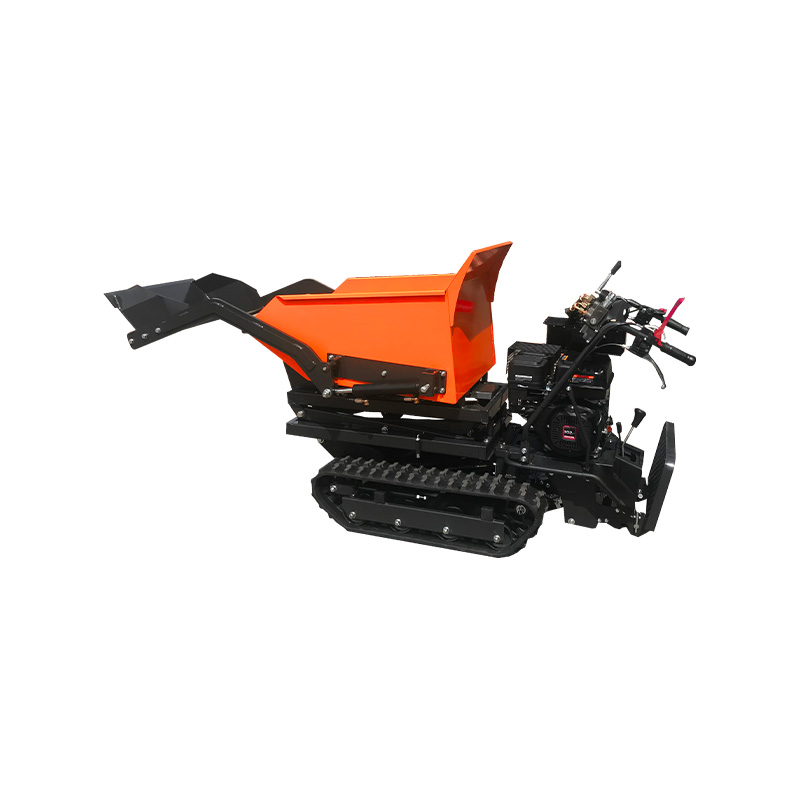

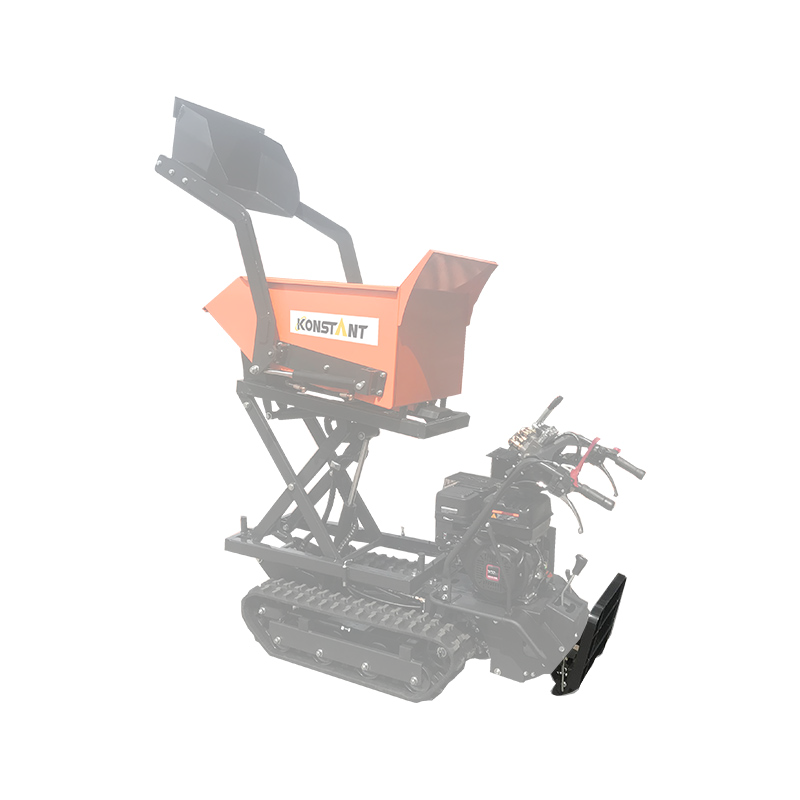

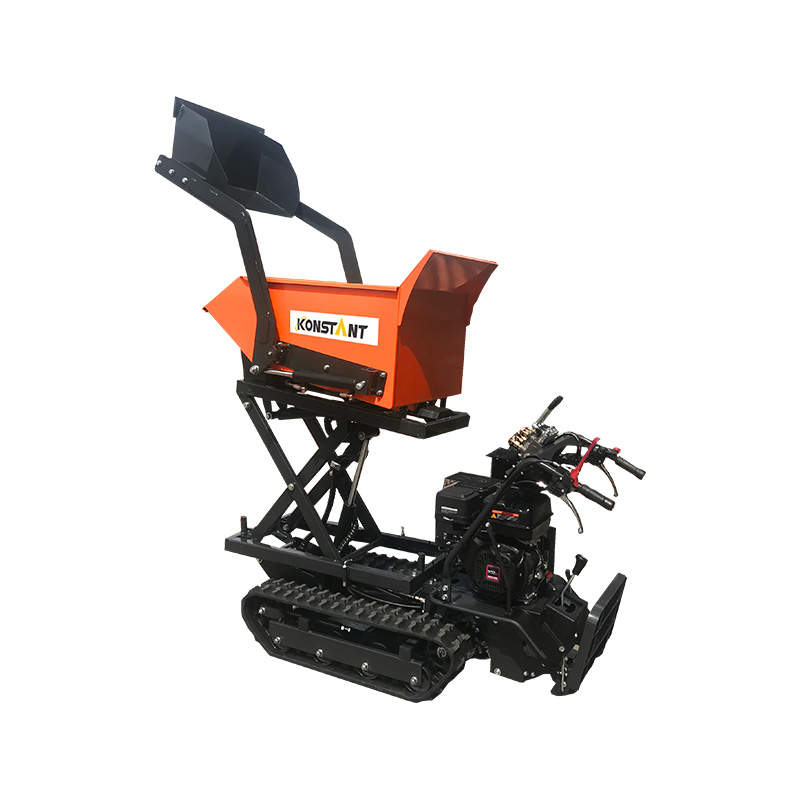

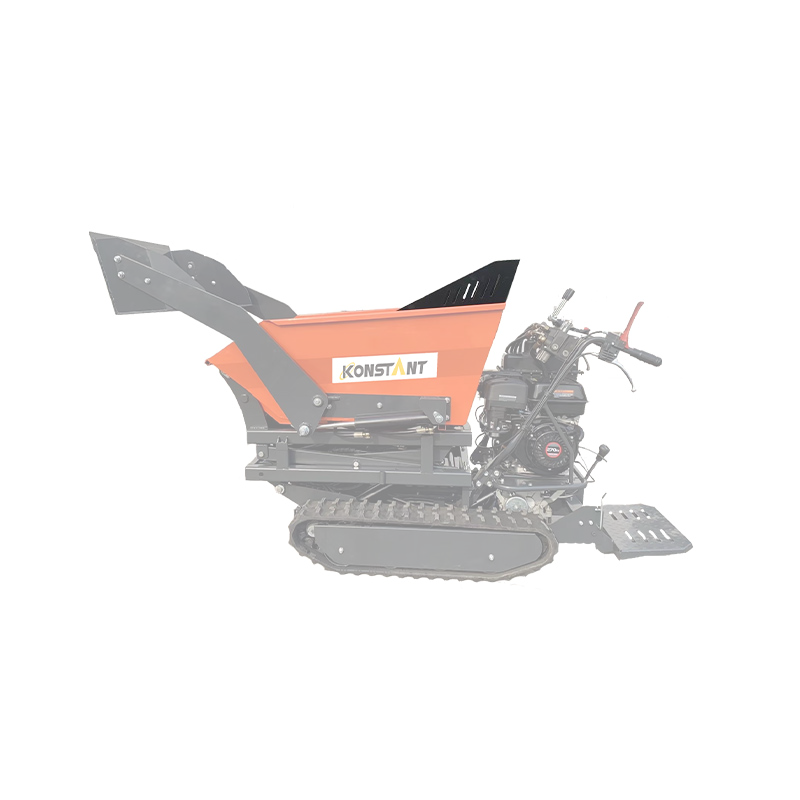

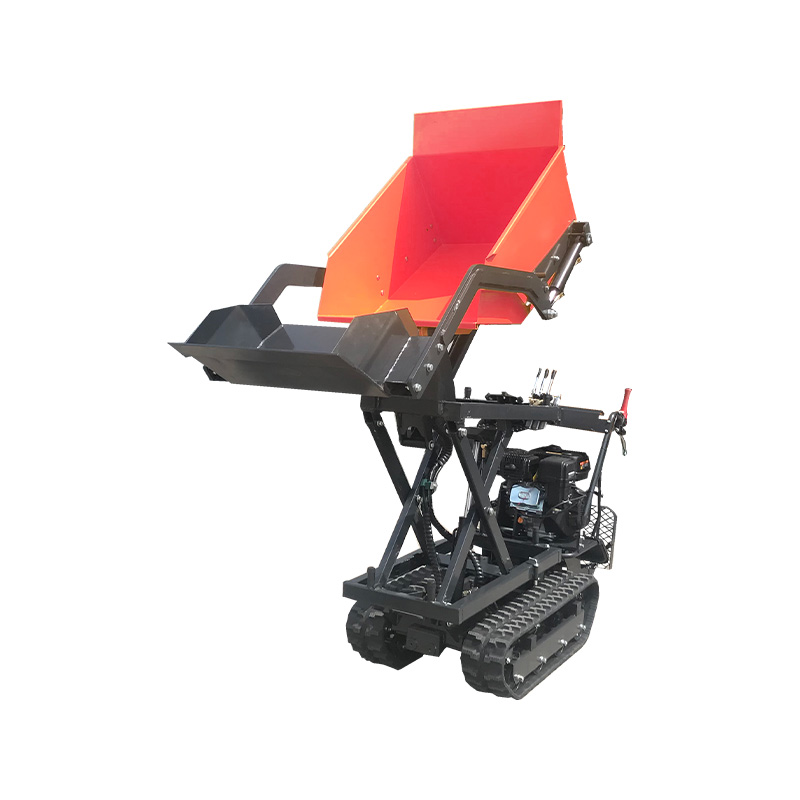

READ MOREKONSTANT MD500CLDHP is an extension of the MD500CLDHS mini-tracked dumper with an extra high tipping bucket and loading shovel, is a mechanical dumper with a hydraulic tipping system and is equipped with a Loncin petrol engine. Equipped with a 3:1 gearbox, a 6:2 gearbox is optional to meet customers with different speed requirements. You can empty the tipping bucket at a high level using a hydraulic scissor construction. The hydraulic self-loading bucket makes it easy to load the bucket with a wide variety of materials up to a weight of 500 kg directly into the container, trailer, or lorry.
Model | KT-MD500CLDHP | KT-MD500CLDH 2P |
Engine | LONCIN 270cc 9HP | LONCN 270cc 9HP |
Fuel | Unleaded Petrol | Unleaded Petrol |
Transmission | 3F+1R | 6F+2R |
Steering | Steering brake | Steering brake |
Tipping &Lifting | Hydraulic | Hydraulic |
Loading | Hydraulic Self-loading | Hydraulic Self-loading |
Lifting height | 140cm | 140cm |
Loading Capacity | 500KG | 500KG |
Bucket Size | 1000*700*450mm | 1000*700*450mm |
Shovel Size | 350*660*200mm | 350*660*200mm |
Track Width | 180mm | 180mm |
Speed (3:1 transmission) | 0-5.0 km/h | 0-5.5 km/h |
Ground Clearance | 110mm | 110mm |
N.W/G.W | 402/432kg | 442/490kg |
Overall Size | 1780*760*1135 mm | 1820*760*1205 mm |
Container Loading | 20GP:18pcs;40HQ:36pcs | 20GP:9pcs;40HQ:36pcs |
