Construction Crawler Mini Dumper - Customized Self Loading 9.0HP Power Hydraulic System

The KONSTANT MD500CLDH series is a heavy-duty, self-loading crawler mini dumper engineered for demanding construction, landscaping, and agricultural tasks. Equipped with a powerful 9.0HP petrol engine, this machine combines high torque performance with exceptional off-road maneuverability. Whether on loose soil, uneven ground, or steep inclines, it provides a reliable and efficient material handling solution.

Model	MD500CLDH	MD500CLDH2
Engine	LONCIN 270cc	LONCIN 270cc
Fuel	Unleaded Petrol	Unleaded Petrol
Start	Recoil or Key start	Recoil or Key start
Transmission	3F+1R	6F+2R
Driven	Crawler	Crawler
Loading Capacity	500kg, 375kg@30 degree slop	500kg, 375kg@30 degree slop
Bucket Size	1000700450mm	1000700450mm
Bucket type	Integrated	Integrated
Speed (3:1 transmission)	0-5.0 km/h	0-5.0 km/h
Speed (6:2 transmission)	0-7.3 km/h	0-7.3 km/h
Tipping	Hydraulic	Hydraulic
Track Width	180mm	180mm
Track Length	34*40mm	34*40mm
N.W/G.W	280/350kg	284/314kg
Overall Size	1700715952mm	17007151100mm
Container Loading	20pcs/20GP,42pcs/40HQ	18pcs/20GP,38pcs/40HQ

Key Highlights

High-Powered Engine
The dumper is powered by a 270cc 9.0HP petrol engine with both recoil and electric start options, offering flexibility and dependable ignition in all weather conditions.
Hydraulic Tipping Functionality
Integrated with a robust hydraulic system, the dumper features effortless skip tipping, reducing manual labor and increasing productivity on-site.
Crawler Drive System
Designed for rugged terrain, the track system ensures excellent traction and stability, even on inclines or slippery surfaces. It can carry loads of up to 500kg (375kg on a 30° slope).
Transmission Options
Available in two configurations:
- MD500CLDH with 3 forward and 1 reverse gear
- MD500CLDH2 with 6 forward and 2 reverse gears
  These options provide greater control over speed and performance, tailored to your specific working conditions.
Compact Yet Capable Design
The integrated steel bucket measures 1000×700×450mm, ensuring ample capacity without compromising the unit’s compactness. Ideal for narrow spaces and confined job sites.

Technical Specifications

Model Options

MD500CLDH (3F+1R Transmission)
MD500CLDH2 (6F+2R Transmission)

Engine & Power

Engine: 270cc 4-stroke gasoline
Fuel Type: Unleaded petrol
Starting System: Recoil or electric key start
Power: 9.0HP

Performance

Transmission: 3F+1R or 6F+2R
Tipping: Hydraulic
Drive: Crawler tracks
Speed (3:1): Up to 5.0 km/h
Speed (6:2): Up to 7.3 km/h
Max Loading: 500kg (375kg on a slope)

Dimensions & Weight

Bucket Size: 1000×700×450mm
Dimensions:
- MD500CLDH: 1700×715×952mm
- MD500CLDH2: 1700×715×1100mm
Net Weight: MD500CLDH – 280kg / MD500CLDH2 – 284kg
Gross Weight: MD500CLDH – 350kg / MD500CLDH2 – 314kg

Container Loading Capacity

MD500CLDH: 20 units (20GP) / 42 units (40HQ)
MD500CLDH2: 18 units (20GP) / 38 units (40HQ)

This advanced crawler dumper is not only rugged and powerful but also customizable with optional accessories to meet the diverse requirements of professional users. Whether for earthworks, farm use, or site transport, it delivers performance you can depend on.

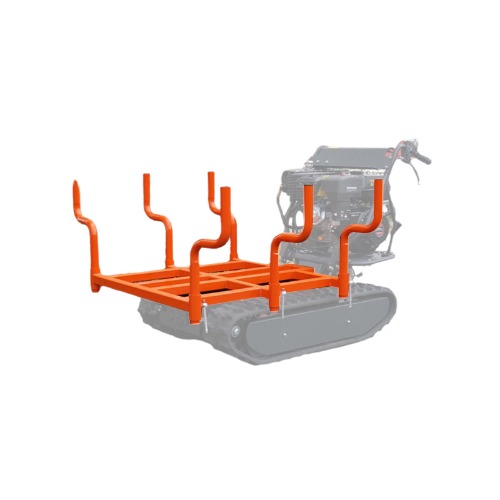

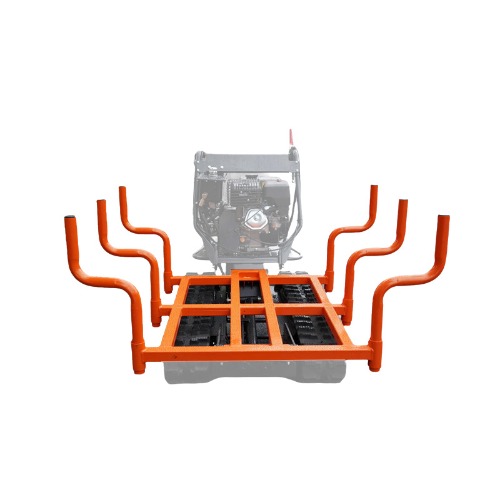

Log Frame
